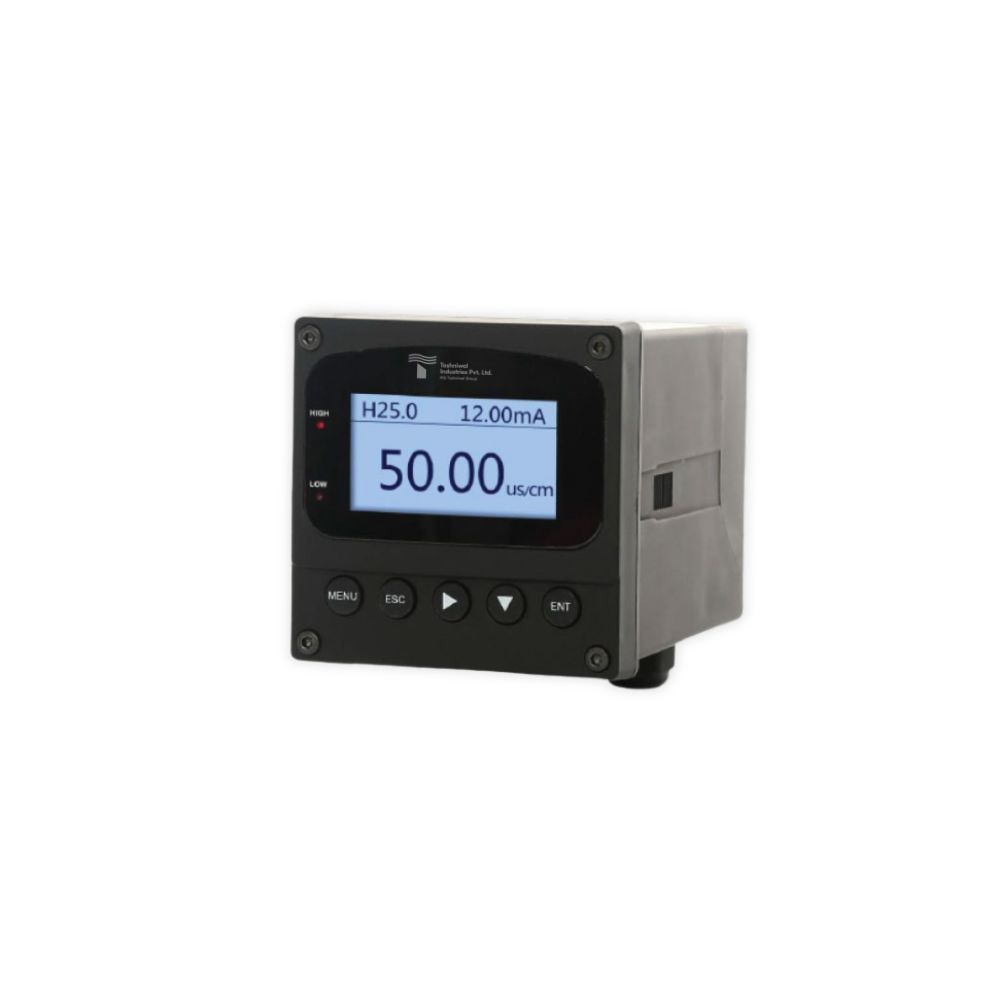

Online Analyser for Conductivity

EC200-C1

The T-EC100-02 Conductivity Meter is a versatile industrial analyser designed for continuous monitoring of conductivity (EC), TDS, resistivity, salinity, and temperature in water and process applications. With features like automatic temperature compensation, dual 4–20 mA outputs, RS485 communication, and high data logging capacity, the system ensures accurate and reliable measurement for a wide range of industrial environments. Its flexible installation and sensor compatibility make it ideal for water quality monitoring and process control.

Accurate multi-parameter measurement (EC, TDS, salinity, resistivity)
Automatic temperature compensation for reliable readings
Supports process control with relay and analog outputs
High data logging capacity for analysis and traceability
Flexible installation (panel, wall, or pipeline mounting)

Application-Based Customization

Engineered for Your Process Conditions

Expert Selection Support

Reliable After-Sales Service

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://new.tipl.com/wp-content/uploads/2026/03/Online-Analyser-for-Conductivity-T-EC100-02.pdf

Easy operation
NEMA-4X enclosure for field mounting and panel mounting
Microprocessor based with self diagnostic feature
Automatically Temperature Compensation
Directly switchable to conductivity or TDS
4.3 inch Large LCD display with background lighting
Conductivity or TDS sensors can be connected thanks to the sensor supply integrated in the output
Using the setup program: user-friendly programming
Data logging capacity
4-20mA analog output &RS485 communication

Water and wastewater treatment plants
Environmental monitoring systems
Pure water and RO plants
Food and beverage processing
Chemical and process industries
Agriculture and aquaculture
Industrial cooling and boiler systems

Measuring Range: 0.00 µS – 2000 mS
TDS Range: 0 – 133000 ppm
Resolution: 0.01 / 0.1 / 1
Accuracy: ±1% F.S.
Temperature Compensation: Automatic / Manual
Temperature Sensor: PT100 / PT1000 / NTC30K
Temperature Compensation Range: -10 to +130 °C
Temperature Resolution: 0.1 °C
Temperature Accuracy: ±0.2 °C
Display: 4.3 inch LCD Backlight Dot Matrix
Analog Output: Isolated 4–20 mA
Communication: RS485 Modbus RTU
Calibration: Auto / Manual
Relay Output: 2 Nos, 5A/250VAC or 5A/30VDC
Cleaning Setting: ON 1–1000 sec, OFF 0.1–1000 hrs
Data Logging Capacity: 500,000
Enclosure Rating: IP65 / IP66
Power Supply: 90–260 VAC
Power Consumption: <7 W
Mounting: Wall / Panel / Pipe Mount
Sensor Type: Flow Through Conductivity Sensor
Cell Constant: 0.01
Sensor Material: SS316
Sensor Thread: G3/4 NPT
Sensor IP Rating: IP68
Sensor Pressure Resistance: Up to 10 bar
Sensor Operating Temperature: Up to 100 °C
Response Time (T90): <5 sec
Sensor Cable Length: 5 m / 10 m / Customized
Sensor Chamber Material: SS316
Sensor Chamber Process Connection: ¼” NPT Inlet & Outlet
