Thermal Imager Camera

TI9

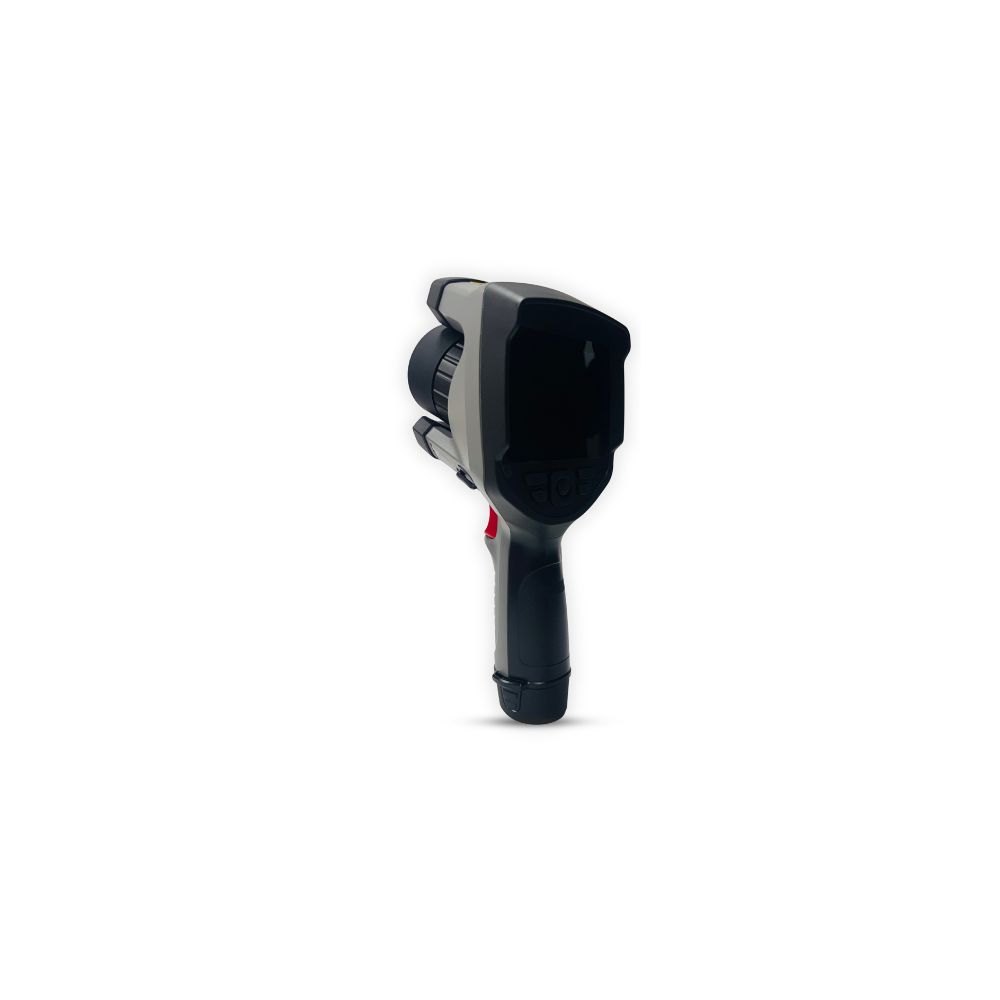

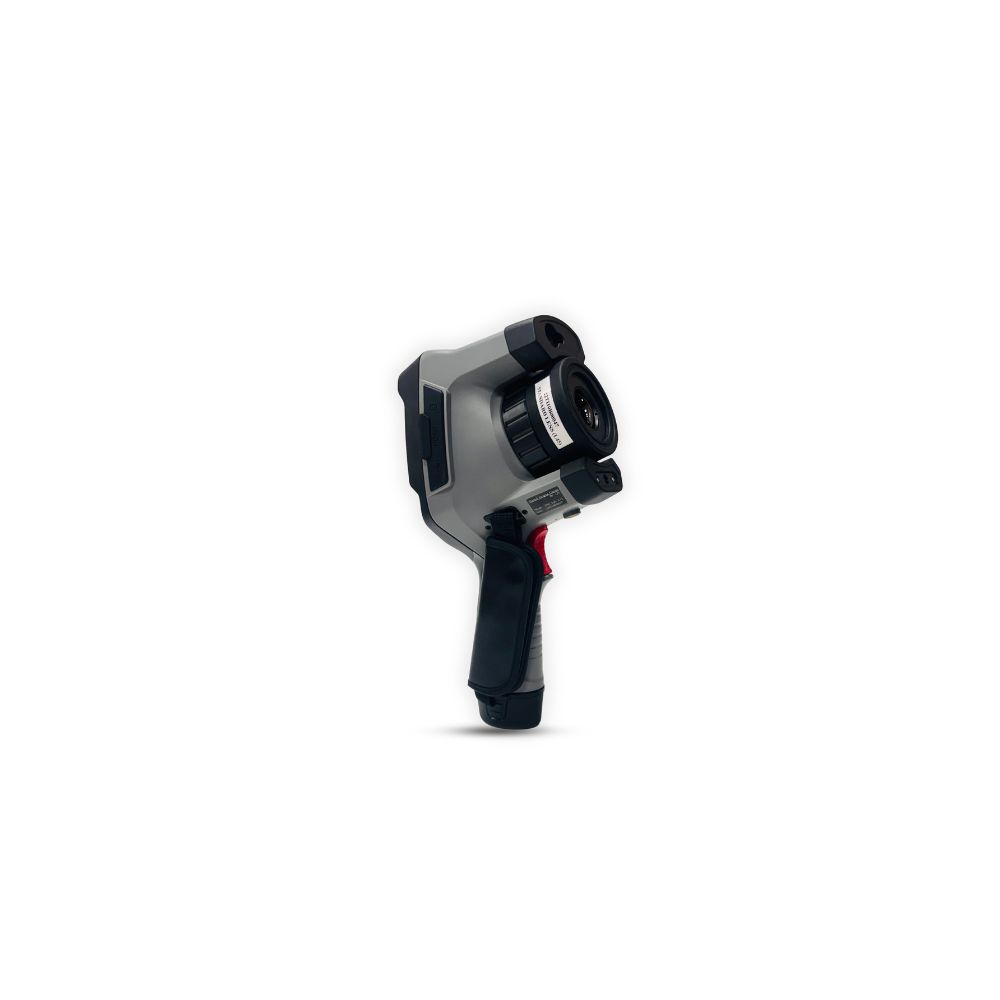

The TI9 Thermal Imaging Camera is a reliable uncooled thermal imaging device designed for industrial inspection and diagnostics. It features an IR resolution of 384 × 288 pixels with super resolution up to 768 × 576, a 4-inch color touch screen, and advanced IR and visible image fusion technology.

The camera includes a 5-megapixel digital camera with dual LED fill light, thermal and visual image recording, sound and light alarms, and text and voice annotation. With built-in Wi-Fi, Bluetooth, GPS, and laser distance measurement, the TI9 is suitable for power plants, railways, petrochemical industries, metallurgy, steel plants, cement plants, and industrial maintenance applications.

Highly accurate thermal inspection for critical equipment
Auto-focus and interchangeable optics improve inspection flexibility
Early fault detection reduces downtime and maintenance cost
Advanced reporting with voice, image, and video recording
Real-time monitoring and remote connectivity enhance productivity

Application-Based Customization

Engineered for Your Process Conditions

Expert Selection Support

Reliable After-Sales Service

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://new.tipl.com/wp-content/uploads/2026/03/TI9-TI10.pdf

High IR detector resolution with super-resolution mode
4-inch bright touch screen with graphical interface operation
5-megapixel digital camera with dual LED fill light
Infrared, visible, picture-in-picture, and dual-band fusion imaging modes
Laser ranging with automatic focus according to target distance
Bluetooth headset support for audio transmission
Interchangeable and auto-detectable lenses
Real-time image transmission via Wi-Fi / mobile app
Audio and video recording capability

Electrical and substation inspection
Power plant maintenance
Steel and cement plant inspection
Petrochemical and refinery monitoring
Railway and infrastructure inspection
Industrial equipment diagnostics

Detector Type: Uncooled FPA Microbolometer
IR Resolution: 384 × 288, Super Resolution 768 × 576, Detector Pitch 17 µm
Thermal Sensitivity (NETD): ≤ 40 mK
Standard Lens : Field of View 25° × 19°, IFOV 1.12 mrad, Focal Length 15 mm, Minimum Focus Distance 0.1 m
Wide Angle Lens (Optional) : 0.5x wide angle lens, 45°x33°, 2.24 mrad, 7.5 mm, 0.08 mtrs
Telephoto Lens (Optional) : 2x telephoto lens 12°x9°, 0.56 mrad, 30 mm, 0.3 mtrs
Ultra Telephoto Lens (Optional) : 3x ultra telephoto lens, 6.9°x5.2°, 0.37 mrad, 45 mm, 0.8 mtrs
Imaging Performance: Frame Rate 50 Hz, Spectral Range 8 µm ~ 14 µm +/-0.5 µm, Digital Zoom 1–10×
Display: 4-inch TFT color touch screen
Temperature Range: -20°C to 650°C (expendable to 1200°C)
Accuracy: ±2°C or ±2%
Storage: 16 GB TF card
Protection: IP54
Weight: ≤ 1.1 kg
